How To Install the E001002 Magnetic Stripe Reader on Elo Kiosks
How To Install the E001002 Magnetic Stripe Reader on Elo Kiosks
Objectives
Install the Elo-Branded E001002 Magnetic Stripe Reader on Elo Kiosks.
Prerequisites
- Elo Kiosk
- E001002 Magnetic Stripe Reader and screws
- Flat head screwdriver
Instructions

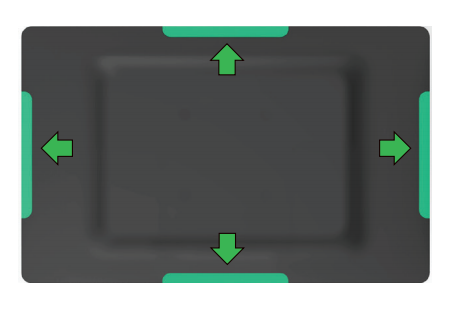

- Select the location to mount the MSR.

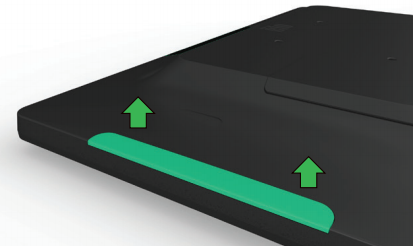

- Remove the selected peripheral cover fromt he display head to expose the peripheral bay.

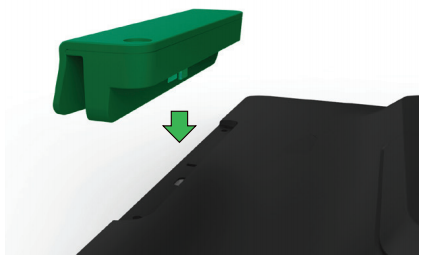

- Gently press the MSR into the peripheral bay making sure the microUSB connector is mated.

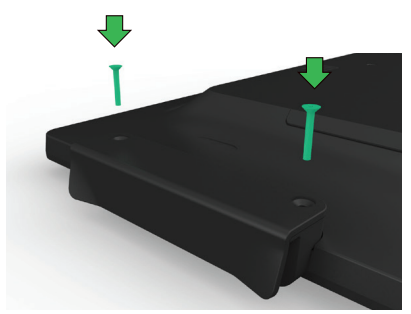

- Install the 2 flat head screws included with the kit.

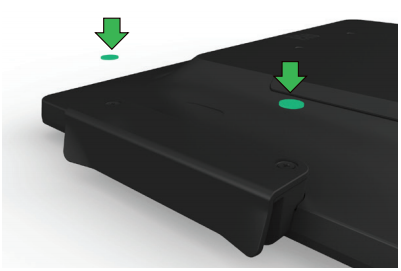

- Remove the protective film from the included mylar covers and place the covers over the screws.
