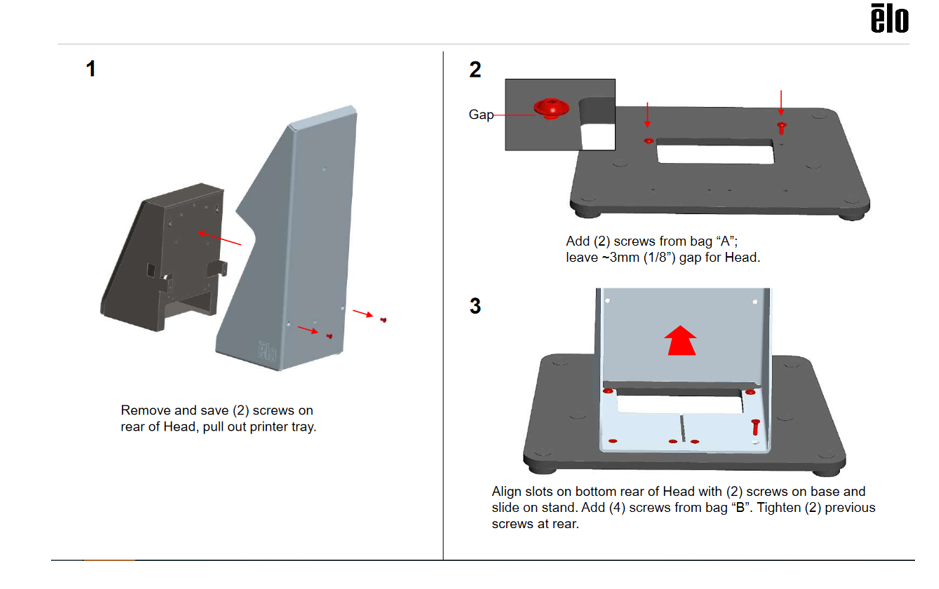

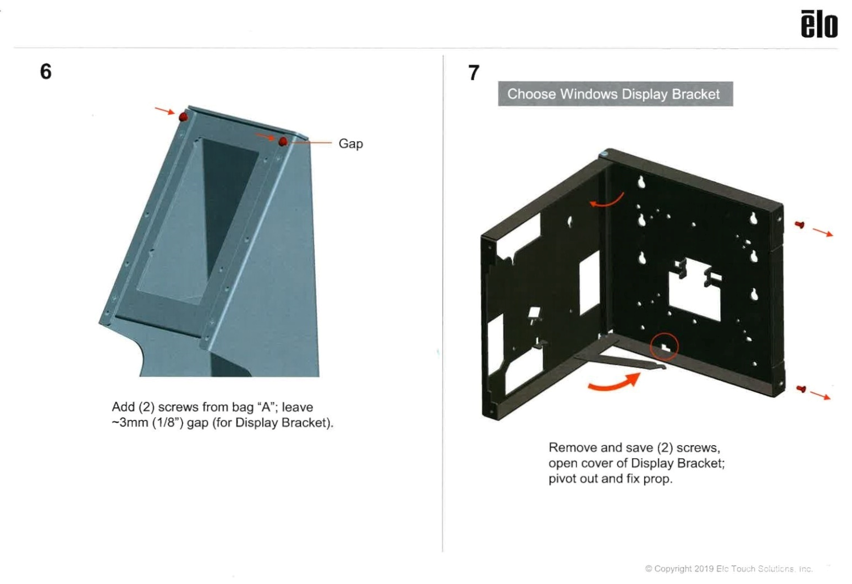

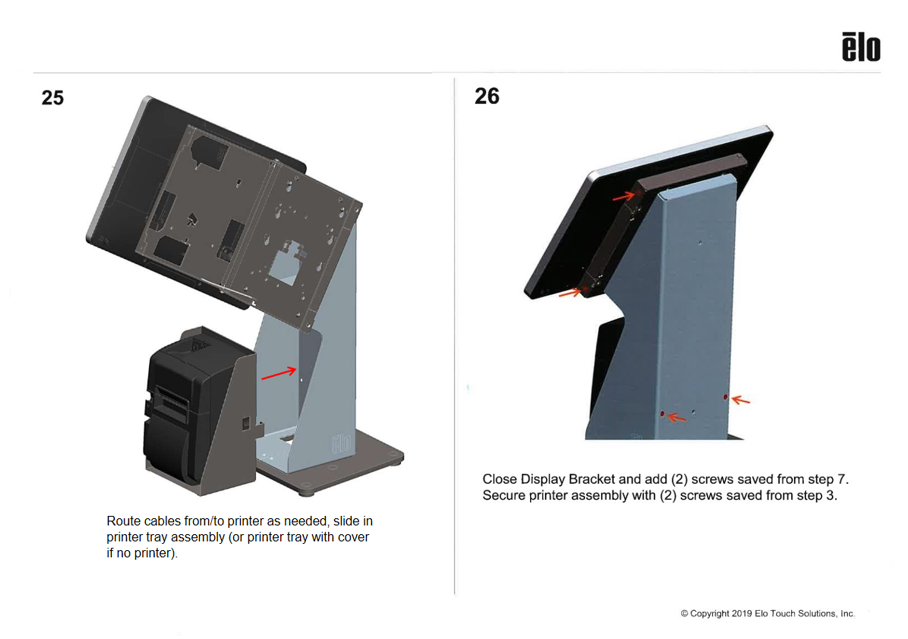

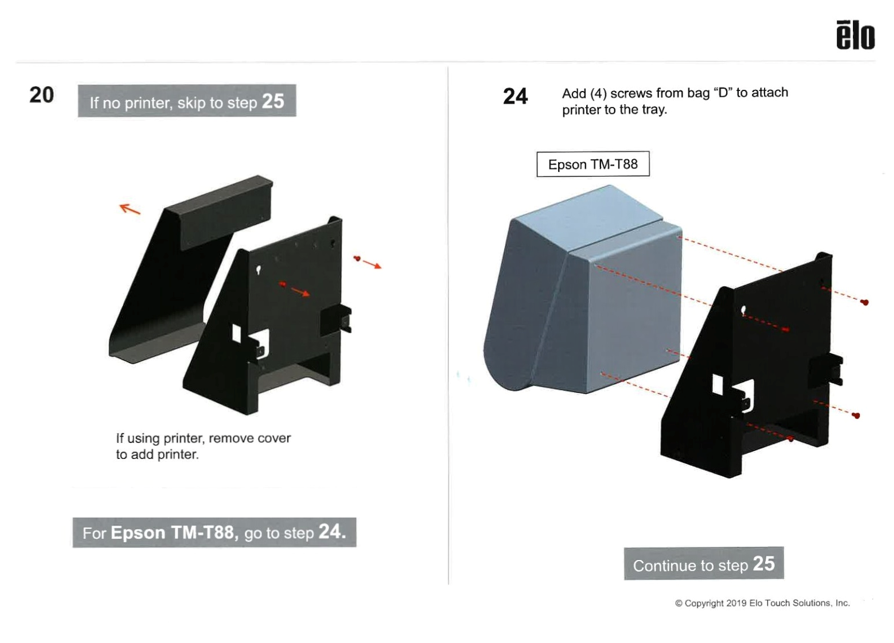

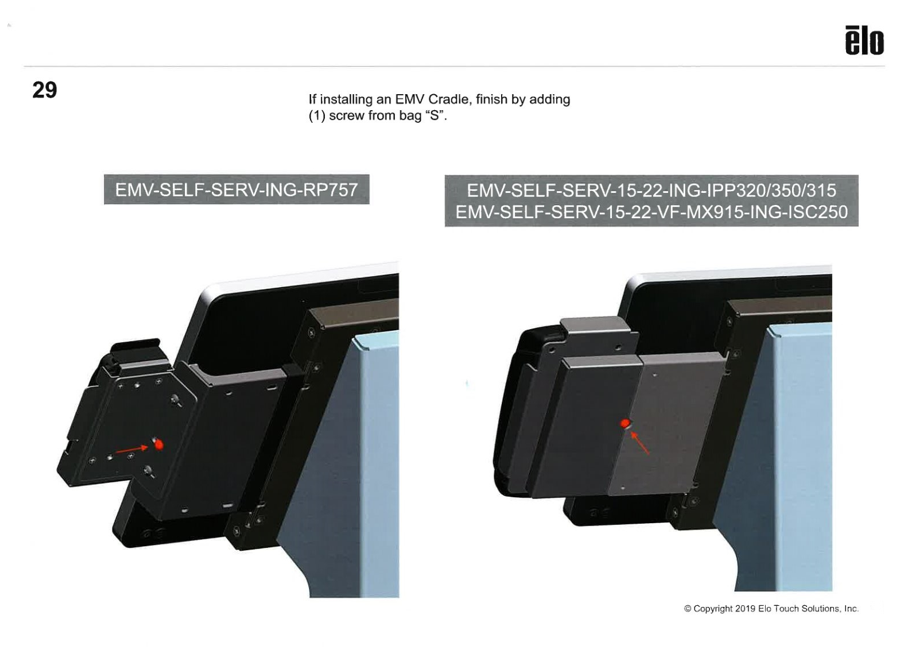

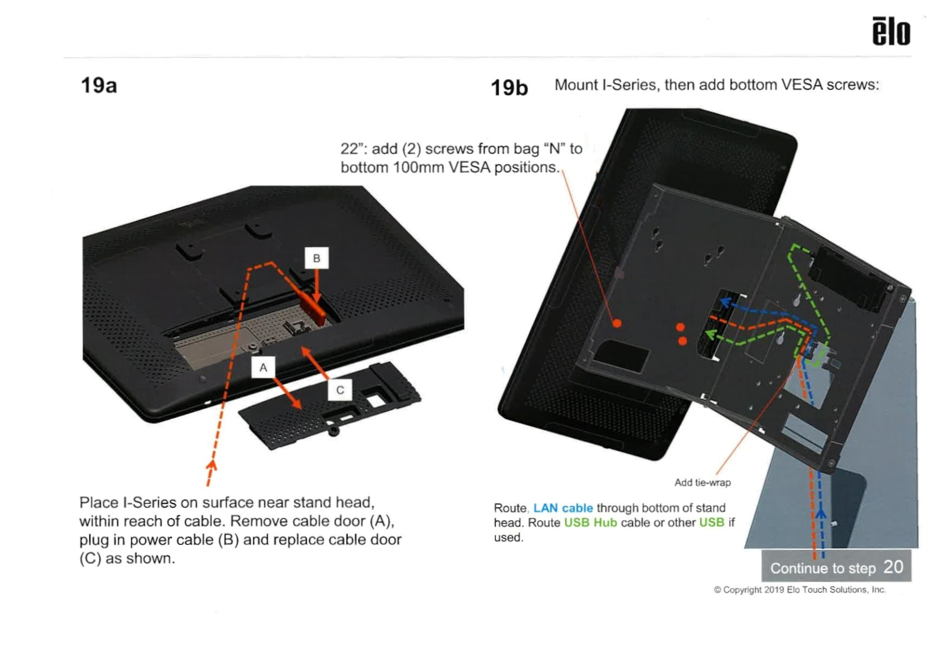

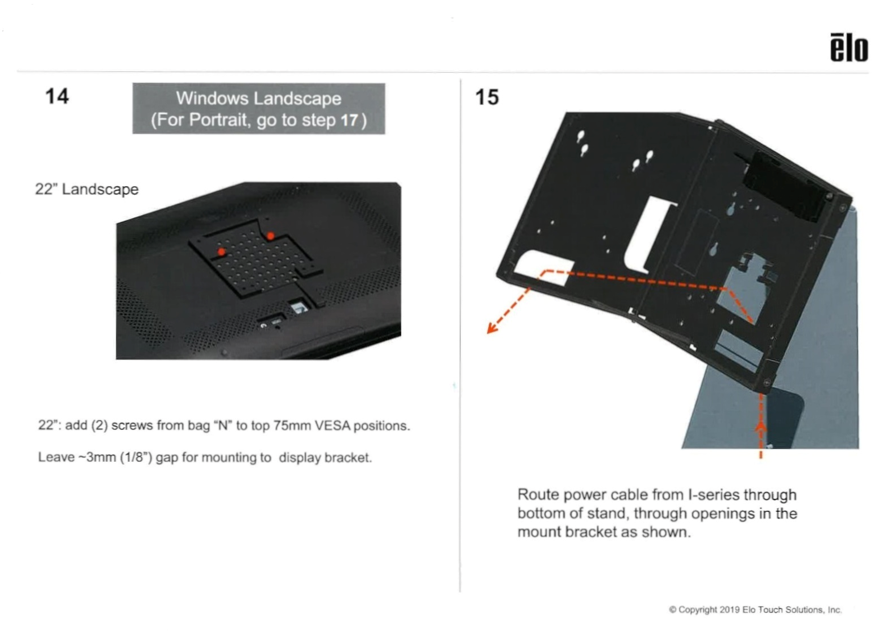

How To Assemble the Self-Service Elo Kiosk Counter Stand
Objectives
Assemble the Elo kiosk counter stand and/or to provide supplemental information to the kiosk assemby process.
Prerequisites
- Elo Kiosk
- Screwdriver set
Instructions
A printable copy can be found J:\FullCount\Documentation\Support\Hardware Spec Sheets\Elo Kiosk\Elo Kiosk Setup - Counter Stand.docx

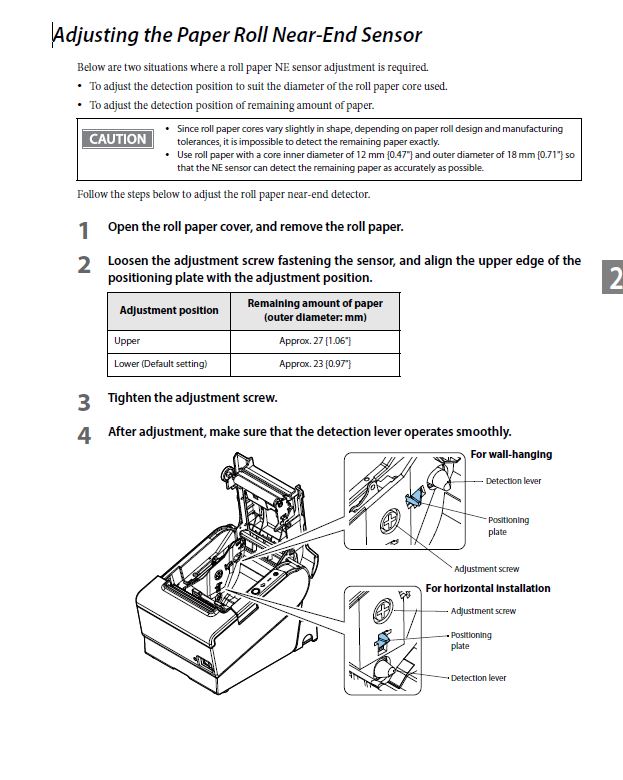

How to adjust the paper roll (out of paper) sensor for mounted printers:
