How To Install and Program Zebra Barcode Scanner for Elo Kiosks
How To Install and Program Zebra Barcode Scanner for Elo Kiosks
Objectives
Install and set up the Zebra Barcode Scanner for Elo Kiosks.
Prerequisites
- Elo Kiosk
- Zebra Barcode Scanner with Part Number: E393160
Instructions

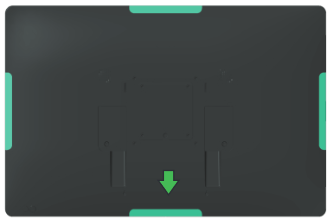

- Select location to mount the barcode scanner. Elo recommends the bottom location in either portrait or landscape.

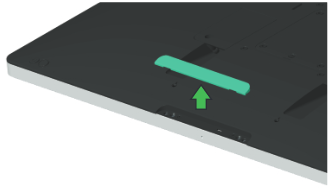

- Remove the selected peripheral cover from the display.

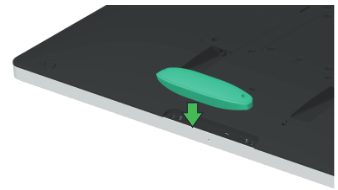

- Gently insert the barcode scanner into the peripheral bay taking care to ensure the connector mates properly.

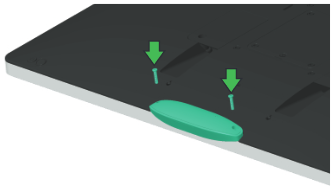

- Install the 2 screws included with the kit.

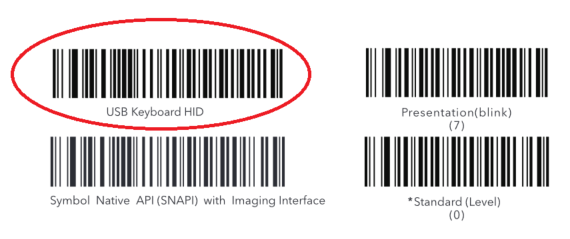

- Scan the "USB Keyboard HID" found in the instruction booklet or by printing the picture below.

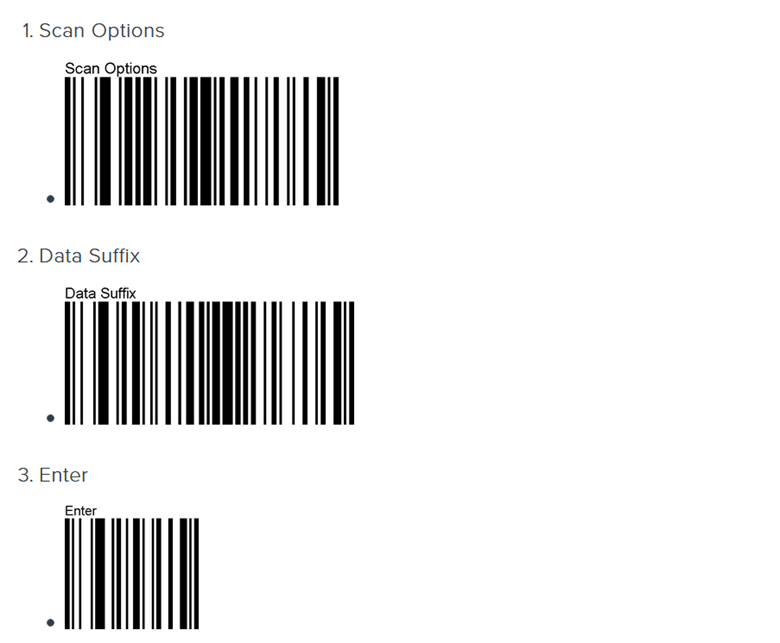

- Scan these barcodes from top to bottom to enable the carriage return. These may need to be printed.
- Test the barcode scanner by scanning some items into the Application.
