How to Check the HDD Cable Connections on Pioneer S-Line Terminals
How to Check the HDD Cable Connections on Pioneer S-Line Terminals
Objectives
Check and reseat connections for cables attaching the HDD to the terminal.
Prerequisites
These instructions apply only to Pioneer S-Line Terminals and will not apply to Cypress Terminals
Instructions
Check Cable Connections for HDD on Pioneer Terminals
- Power off the terminal
- **It is vitally important to make sure the terminal is completely powered down before proceeding to step 2**
- Remove the lower cover by pressing the two buttons on either side and lifting.
- Locate the HDD on the left side of the base of the terminal next to the printer
- For easy access to the HDD, you can remove the drive and its case by loosening the hand screw, sliding the case towards you and lifting.

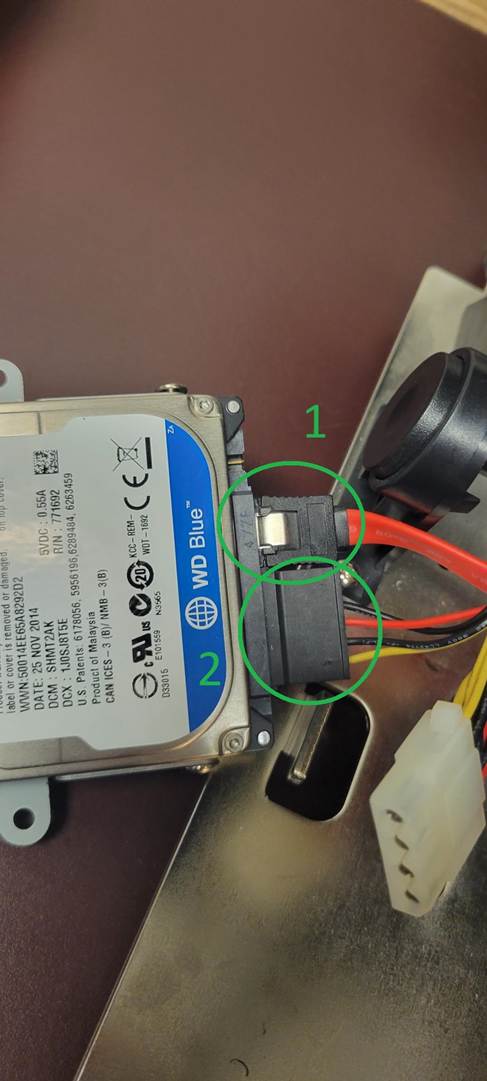

- Unplug the two cables connected to the HDD (cables labeled 1 & 2 on the attached photos)
- Plug each cable back into the drive, ensuring the are firmly in place.
- Replace the HDD and its case into the base and tighten the hand screw holding it in place.

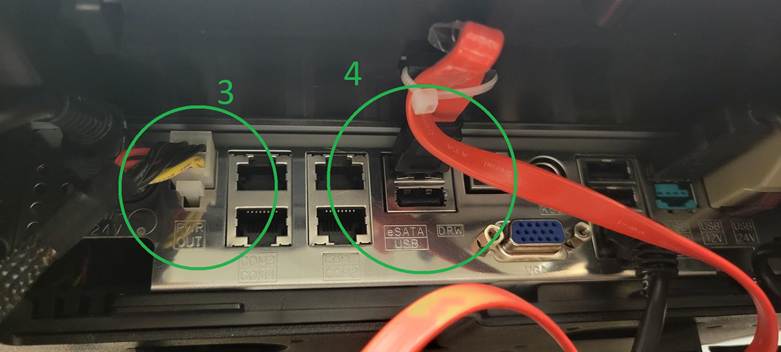

- Unplug the power cable connecting the terminal to the HDD in the port labeled “ PWR OUT” (3 on the attached photos)
- Plug the power cable back into the “PWR OUT” port ensuring it is firmly in place
- Unplug the eSATA cable connecting the terminal to the HDD in the port labeled “eSATA” (4 in the attached photos)
- Plug the eSATA cable back into the “eSATA” port ensuring it is firmly in place.
- Replace the base cover
- Power
on the terminal.
