Objectives

Boot a Cyprus terminal from a USB device such as a thumb drive in order to install a new operating system.

Prerequisites

1. USB keyboard.
2. Cyprus terminal.
3. Bootable USB device such as a thumb drive with an OS image installer.

Instructions

***Before you begin, please take a picture or take note of current network settings of this device. Static IPs could be necessary for receipt printing or a bar terminal.***

1. Shutdown the terminal.
2. Plug in the USB drive and the keyboard.

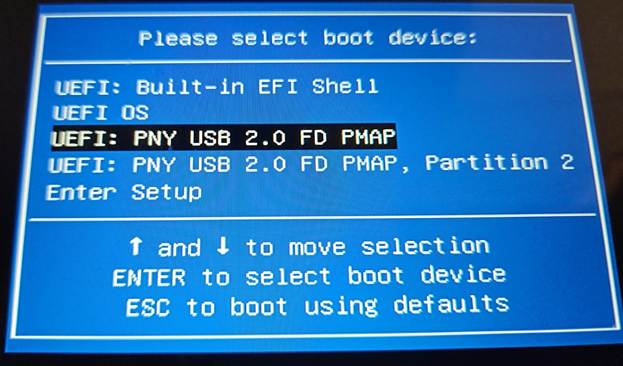

3. Power on the terminal, and press "F11" once every second until a boot device prompt appears.
4. On the list of available boot devices, choose the USB installer in UEFI mode and press enter. This will appear as "UEFI: [Name of USB device]".

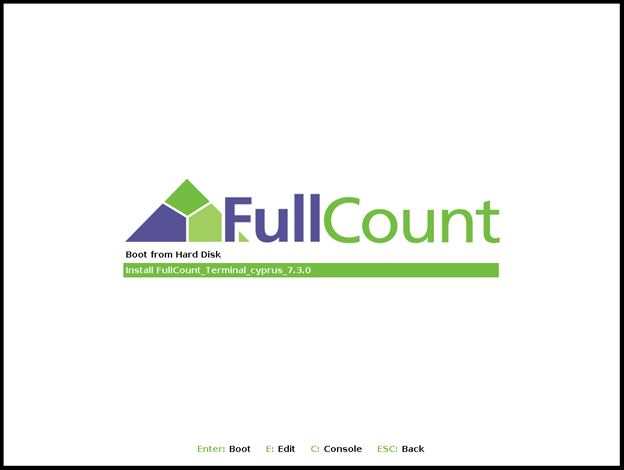

5. A menu with the FullCount logo will appear with 2 options. Choose the option that begins with "Install FullCount..."


6. The installer will run and install the operating system. When it reboots, unplug the USB drive. The drive should now boot with the new operating system.

You can find a customer-oriented PDF of these instructions titled "How to Re-Image a FullCount Terminal" here: J:\FullCount\Documentation\Support\Help Article PDFs\Current Versions
