Assemble Partner Tech Alfred AD-215 floor stand
Assemble Partner Tech Alfred AD-215 floor stand
Removing the Printer
Assuming the Counter Top stand has the power strip and printer already installed, you will need to remove the printer from the Counter Top Stand for this process. The entire printer is mounted to a base plate that can be slid out after removing one screw noted below:
Assembling the Floor Stand

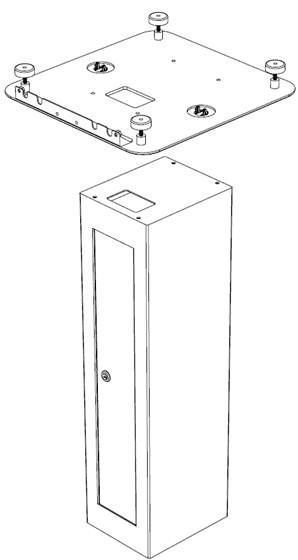

- Align the Floor Base with the
Floor Stand using the picture below. Be aware of which direction the Floor
Stand is facing. The locked door should be considered the back
of the floor stand.

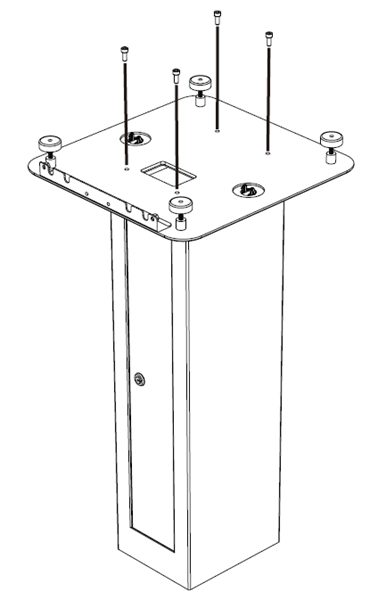

- Screw the Floor Base into the
Floor Stand with four screws.

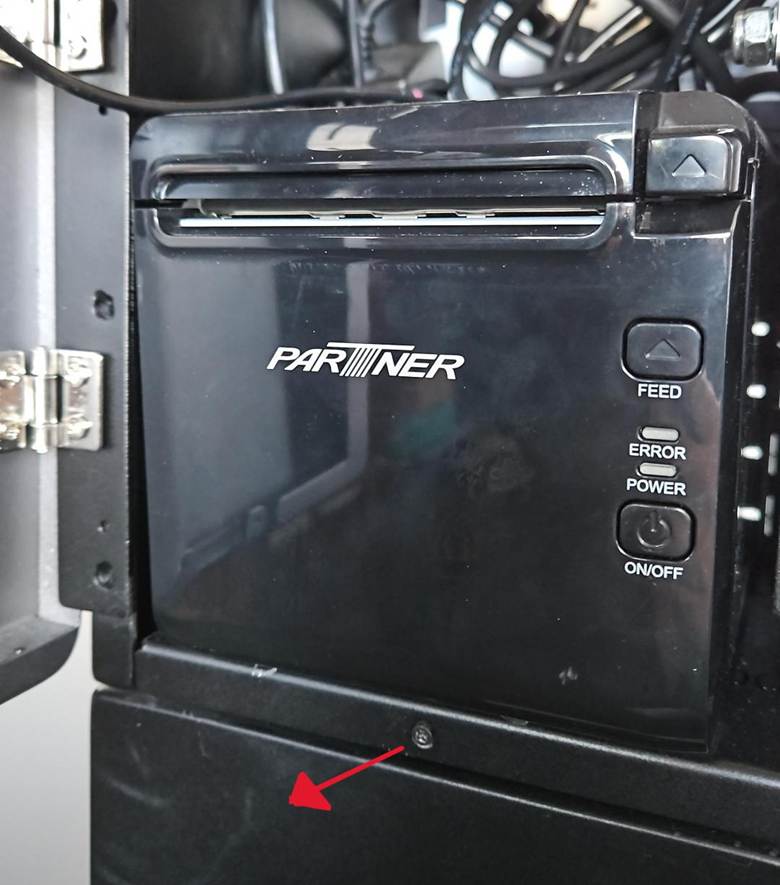

- Remove the printer from the
Counter Top Stand. The entire printer is mounted to a base plate that can
be slid out after removing one screw noted below.

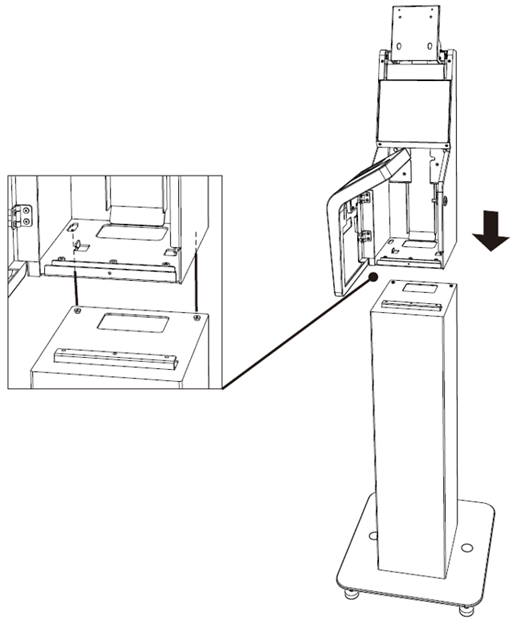

- Align the the Counter Top stand
with the Floor Stand using the picture below. Two Free Cutting screws will
be used for this step.

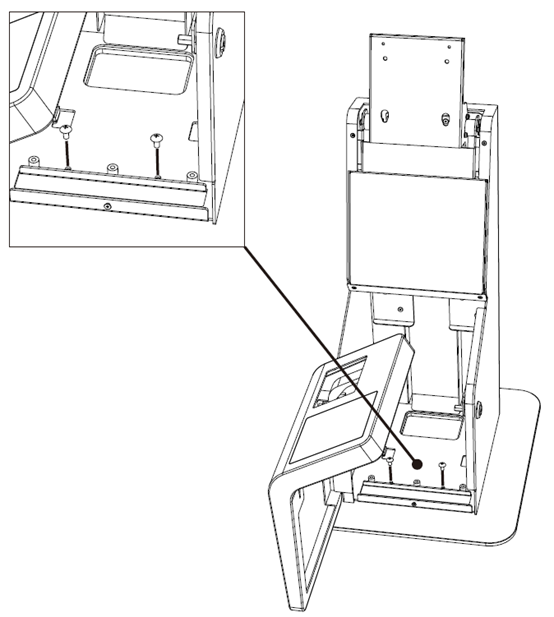

- Lock the Counter Top Stand into
the Floor Stand using Free Cutting screws.

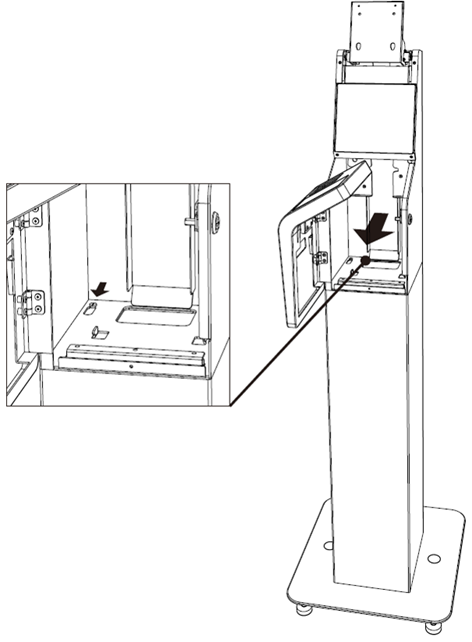

- Slide the printer back and screw it in.
- Affix the Counter Top Stand to
the Floor Stand further with Umbrella screws in the front of the unit.
**Note: If your Counter Top Stand has a barcode scanner, configure it HERE.
**Note: If the printer is not already configured in WinDriver mode, check HERE for instructions on configuring it.
