Assemble Partner Tech Alfred AD-215 counter top stand

Assemble Partner Tech Alfred AD-215 counter top stand

Removing the Printer

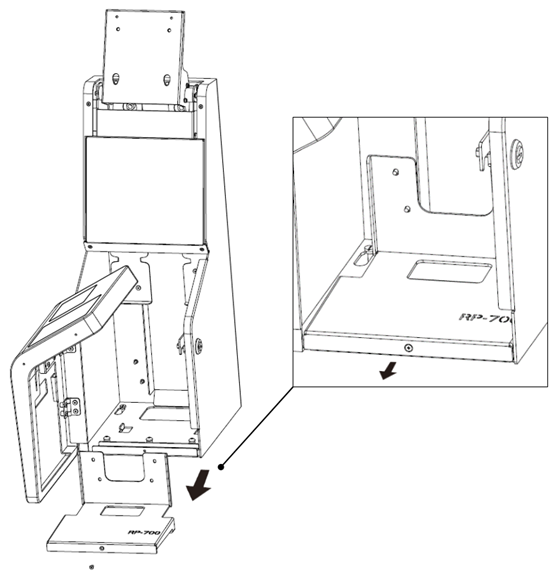

Assuming the Counter Top stand has the power strip and printer already installed, you will need to remove the printer from the Counter Top Stand for this process. The entire printer is mounted to a base plate that can be slid out after removing one screw noted below:

Assembling the Counter Top Stand

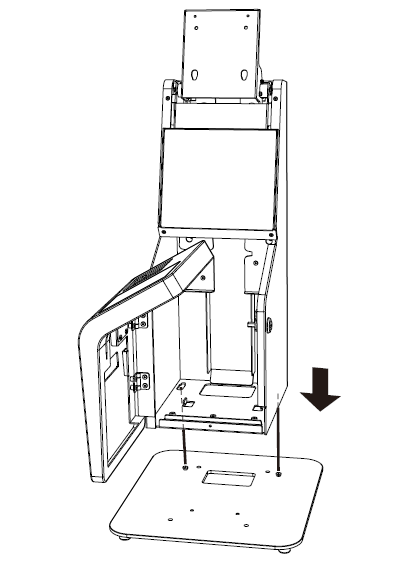

  1. Align the Counter Top stand with the Counter Top base using the picture below.

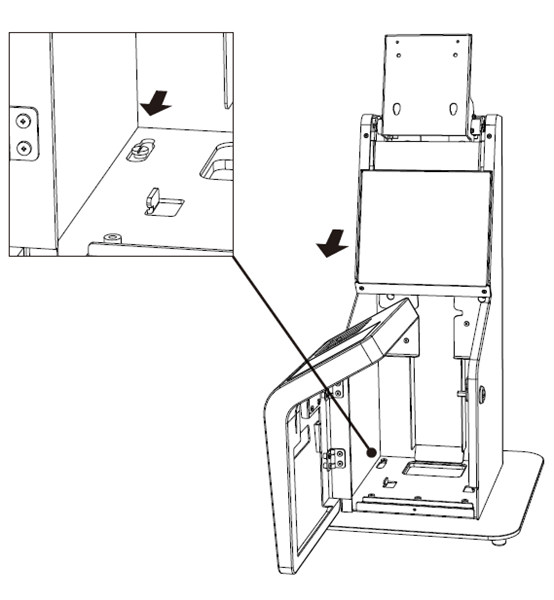

2. Slide the Counter Top Base into the designated hole noted in the picture below. Screw it in once it's in place.

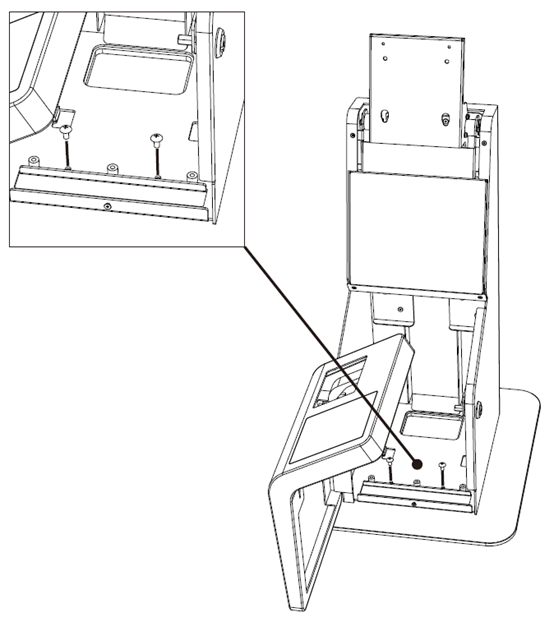

    3. Two more screws are needed at the front of the Counter Top Stand.




**Note: If your Counter Top Stand has a barcode scanner, configure it HERE.

**Note: If the printer is not already configured in WinDriver mode, check HERE for instructions on configuring it.
