Configure Wireless Settings on 7.2.X Hardware

Configure Wireless Settings on 7.2.X Hardware

Objectives

  • Configure Linux device, such as a POS-X ION tablet or Elo Self Service Kiosk, with wireless network information

Prerequisites

  • USB wired keyboard
  • ESSID/Passphrase information

Instructions

  1. Plug a USB keybaord into the device and press Ctrl + Alt + F1 to switch to shell.

  2. Log in as networkconfig

  3. Password is networkconfig (This will not display anything when it is entered.)

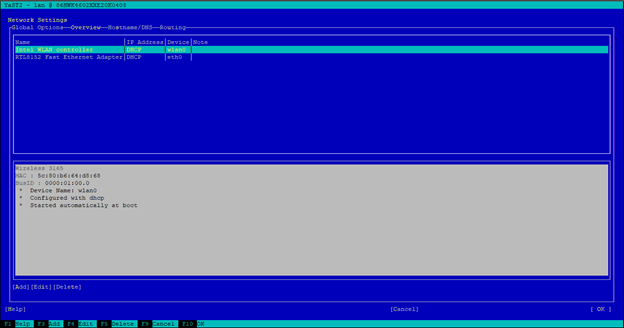

  4. Tab to highlight the “Intel WLAN controller” network card. Press Alt + i (or F4) to edit the network card.

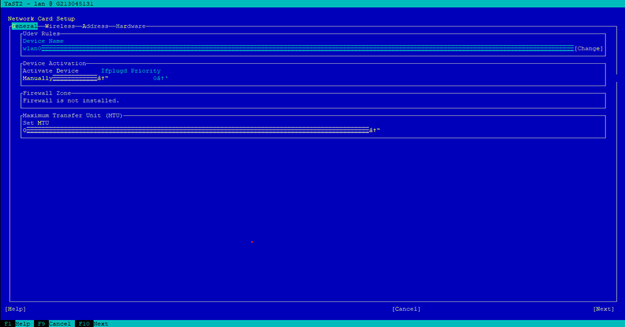

  5. Press Alt + g to navigate to the General menu.



  6. Press Alt + d to Activate Device.

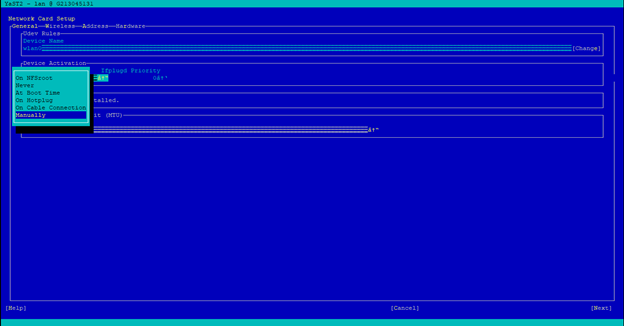

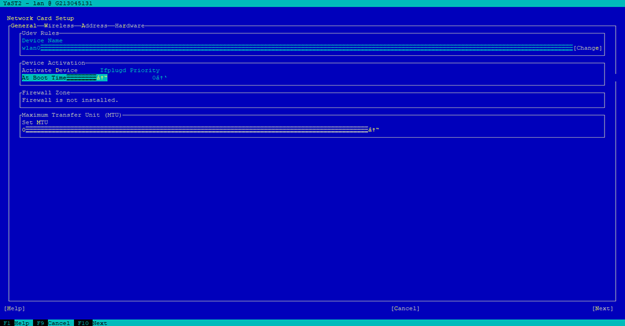

  7. Use the arrow keys to highlight At Boot Time, press Enter.



  8. Press Alt + w to navigate to the Wireless menu.

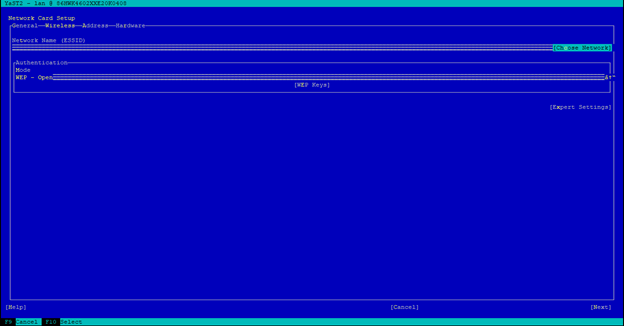

  9. Tab to "Choose Network" or press Alt + o (or F10).

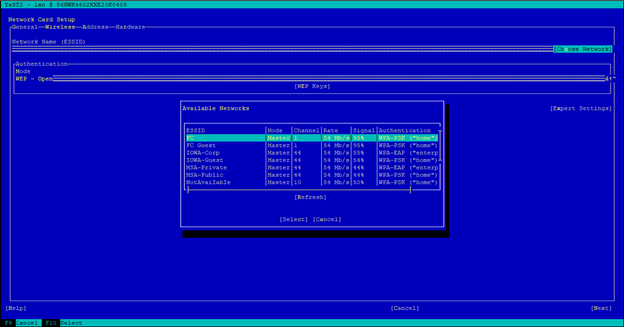

  10.  Using the arrow keys to navigate, highlight the desired network and press Alt + c to select the highlighted entry.

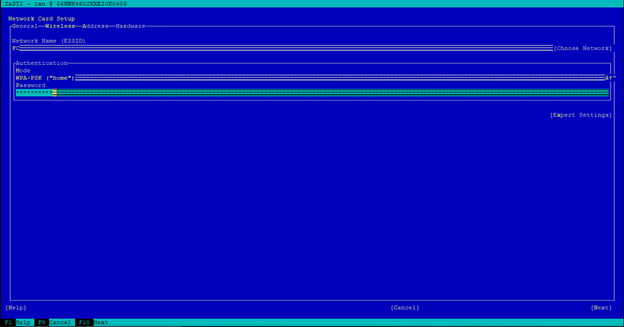

  11. The Authentication Mode should update accordingly. Tab to "Password" or press Alt + p and type in the password for the wireless network that has been selected.



  12. Press Alt + n for Next.

  13. Press Alt + o to save your changes and close.
