Remote Debugging

Remote Debugging

Assumptions

Local tomcat instance on machine

Eclipse installed on machine

Ability to deploy and run webapps on local tomcat instance



Steps

1.  Start tomcat in debug mode

Command Line

      Navigate to [tomcat_base]/bin

            Run command:

                  catalina jpda start

      *This will start the debug server listening on port 8000.  If 8000 is unavailable you can specify with extra arguments. See attached document 1.



Windows Service

       Add the following lines to Java Options under Configure Tomcat - Java tab

      -Xdebug
      -Xrunjdwp:transport=dt_socket,server=y,suspend=n,address=8000

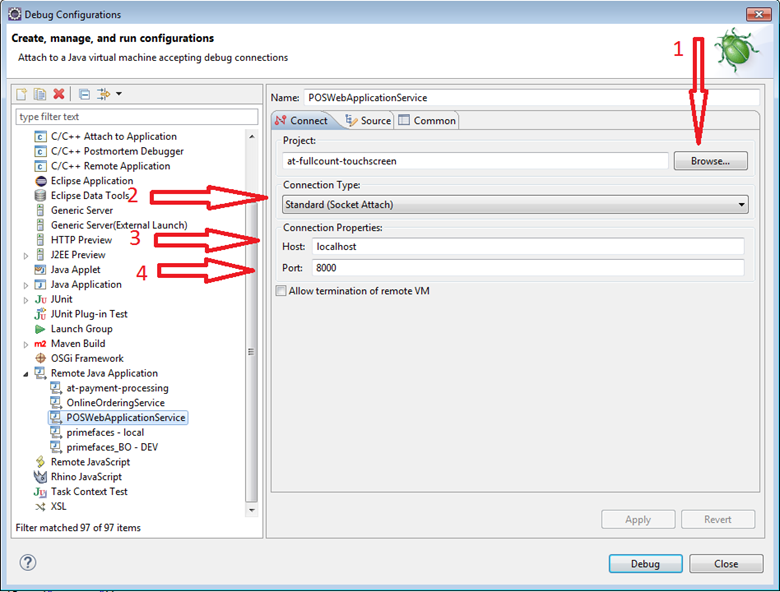

2.  Create Debug configuration in Eclipse

      Run ->  Debug Configurations...



      1. Select the project you want to debug. If you want to debug any dependencies of that project you will need to ensure the source code for that project is imported into eclipse.

      2. Ensure Standard (Socket Attach) is selected

      3. Enter host location

      4. Enter Port. Default from above steps is 8000.



3. Attach Debugger to running instance of Tomcat

  • Select 'Debug' from above dialog.

4. Create desired breakpoints and open Debug Perspective of Eclipse

  • Create breakpoints by either double clicking, or rightclick ->toggle breakpoint  of left margine of source code.
  • Open debug perspective from Window-> Open Perspective -> Debug

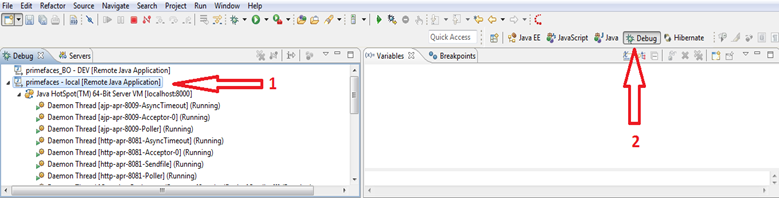

Debug Perspective



  1.  Shows that Eclipse is currently connected, you can see all running threads
  2.  Quick button to open view











Hints:

  • Set breakpoints by double-clicking the left margin of Eclipse editor, or by rightclicking the margin -> toggle breakpoint.
  • Clear breakpoints after making changes, this avoids 'ghost breakpoints'  (there is a clear all button in debug perspective -> breakpoints tab).
  • Ensure that the code you are debugging on the server is up-to-date with what is in your editor.
